Input

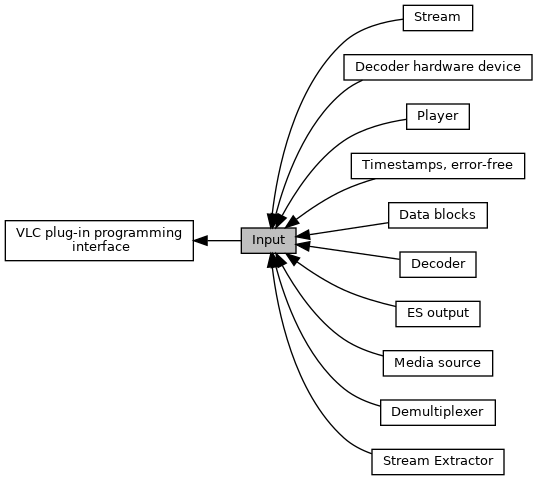

Collaboration diagram for Input:

Modules
	Data blocks
	Decoder
	Decoder hardware device
	Demultiplexer
	ES output
	Media source
	Player
	Stream
	Stream Extractor
	Timestamps, error-free
	These functions support generating timestamps without long term rounding errors due to sample rate conversions.

Files
file	vlc_input.h

Data Structures
struct	seekpoint_t
struct	input_title_t
struct	input_attachment_t

Macros
#define	INPUT_TITLE_MENU   0x01 /* Menu title */
#define	INPUT_TITLE_INTERACTIVE   0x02 /* Interactive title. Playback position has no meaning. */
#define	INPUT_RATE_MIN   0.03125f
	Input rate. More...
#define	INPUT_RATE_MAX   31.25f
	Maximal rate value. More...

Typedefs
typedef struct input_resource_t	input_resource_t
typedef struct input_title_t	input_title_t

Functions
static seekpoint_t *	vlc_seekpoint_New (void)
static void	vlc_seekpoint_Delete (seekpoint_t *point)
static seekpoint_t *	vlc_seekpoint_Duplicate (const seekpoint_t *src)
static input_title_t *	vlc_input_title_New (void)
static void	vlc_input_title_Delete (input_title_t *t)
static input_title_t *	vlc_input_title_Duplicate (const input_title_t *t)
VLC_EXPORT void	vlc_input_attachment_Release (input_attachment_t *a)
VLC_EXPORT input_attachment_t *	vlc_input_attachment_New (const char *psz_name, const char *psz_mime, const char *psz_description, const void *p_data, size_t i_data)
VLC_EXPORT input_attachment_t *	vlc_input_attachment_Hold (input_attachment_t *a)

Detailed Description

Input thread

Macro Definition Documentation

INPUT_RATE_MAX

#define INPUT_RATE_MAX   31.25f

Maximal rate value.

INPUT_RATE_MIN

#define INPUT_RATE_MIN   0.03125f

Input rate.

It is an float used by the variable "rate" in the range [INPUT_RATE_MIN, INPUT_RATE_MAX] the default value being 1.f. It represents the ratio of playback speed to nominal speed (bigger is faster). Minimal rate value

INPUT_TITLE_INTERACTIVE

#define INPUT_TITLE_INTERACTIVE   0x02 /* Interactive title. Playback position has no meaning. */

INPUT_TITLE_MENU

#define INPUT_TITLE_MENU   0x01 /* Menu title */

Typedef Documentation

input_resource_t

typedef struct input_resource_t input_resource_t

input_title_t

typedef struct input_title_t input_title_t

Function Documentation

vlc_input_attachment_Hold()

VLC_EXPORT input_attachment_t* vlc_input_attachment_Hold

(

input_attachment_t *

a

)

References input_attachment_priv::a, input_attachment_priv(), p, and vlc_atomic_rc_inc().

Referenced by input_GetAttachment(), and input_GetAttachments().

vlc_input_attachment_New()

VLC_EXPORT input_attachment_t* vlc_input_attachment_New	(	const char *	psz_name,
		const char *	psz_mime,
		const char *	psz_description,
		const void *	p_data,
		size_t	i_data
	)

References input_attachment_priv::a, input_attachment_t::i_data, likely, input_attachment_t::p_data, input_attachment_t::psz_description, input_attachment_t::psz_mime, psz_mime, psz_name, input_attachment_t::psz_name, strdup(), unlikely, vlc_atomic_rc_init(), and vlc_input_attachment_Release().

Referenced by LoadSlaves().

vlc_input_attachment_Release()

VLC_EXPORT void vlc_input_attachment_Release

(

input_attachment_t *

a

)

References input_attachment_priv::a, input_attachment_priv(), p, and vlc_atomic_rc_dec().

Referenced by accessNewAttachment(), AppendAttachment(), End(), input_ExtractAttachmentAndCacheArt(), InputUpdateMeta(), LoadSlaves(), stream_AttachmentDelete(), and vlc_input_attachment_New().

vlc_input_title_Delete()

static void vlc_input_title_Delete ( input_title_t *  t )

inlinestatic

References input_title_t::i_seekpoint, input_title_t::psz_name, input_title_t::seekpoint, and vlc_seekpoint_Delete().

Referenced by InputSourceDestroy(), and UpdateTitleListfromDemux().

vlc_input_title_Duplicate()

static input_title_t* vlc_input_title_Duplicate ( const input_title_t *  t )

inlinestatic

References input_title_t::i_flags, input_title_t::i_length, input_title_t::i_seekpoint, likely, input_title_t::psz_name, input_title_t::seekpoint, strdup(), vlc_alloc(), vlc_input_title_New(), and vlc_seekpoint_Duplicate().

vlc_input_title_New()

static input_title_t* vlc_input_title_New ( void  )

inlinestatic

References input_title_t::i_flags, input_title_t::i_length, input_title_t::i_seekpoint, input_title_t::psz_name, and input_title_t::seekpoint.

Referenced by vlc_input_title_Duplicate().

vlc_seekpoint_Delete()

static void vlc_seekpoint_Delete ( seekpoint_t *  point )

inlinestatic

References seekpoint_t::psz_name.

Referenced by vlc_input_title_Delete().

vlc_seekpoint_Duplicate()

static seekpoint_t* vlc_seekpoint_Duplicate ( const seekpoint_t *  src )

inlinestatic

References seekpoint_t::i_time_offset, likely, seekpoint_t::psz_name, strdup(), and vlc_seekpoint_New().

Referenced by vlc_input_title_Duplicate().

vlc_seekpoint_New()

static seekpoint_t* vlc_seekpoint_New ( void  )

inlinestatic

References seekpoint_t::i_time_offset, and seekpoint_t::psz_name.

Referenced by vlc_seekpoint_Duplicate().
